- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Series
- VUE-2000
- Product Type
- LCD Touchscreen Monitor
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Screen Size Class
- 15"
- Viewable Screen Size
- 15"
- Screen Mode
- XGA
- Pixel Pitch
- 0.29700 mm x 0.29700 mm
- Response Time
- 18 ms
- Aspect Ratio
- 4:3
- Horizontal Viewing Angle
- 176°
- Vertical Viewing Angle
- 176°
- Mount Type
- Panel Mount
- Bracket-mountable
- Wall Mountable
- Arm-mountable
- Features
- Anti-glare
- ComfortView
- On-screen Display (OSD)
- Cable Management
- Ingress Protection (IP) Rating
- IP65
- Impact Protection (IK) Rating
- IK08
- Video
- Maximum Resolution
- 1024 x 768
- Colour Supported
- 16.7 Million Colours
- Native Contrast Ratio
- 2,500:1
- Brightness
- 500 cd/m²
- Audio
- Speakers
- Yes
- Touchscreen Information
- Touchscreen Type
- Projected Capacitive
- Multi-touch Screen
- Yes
- Number of Simultaneous Touchpoints
- 10

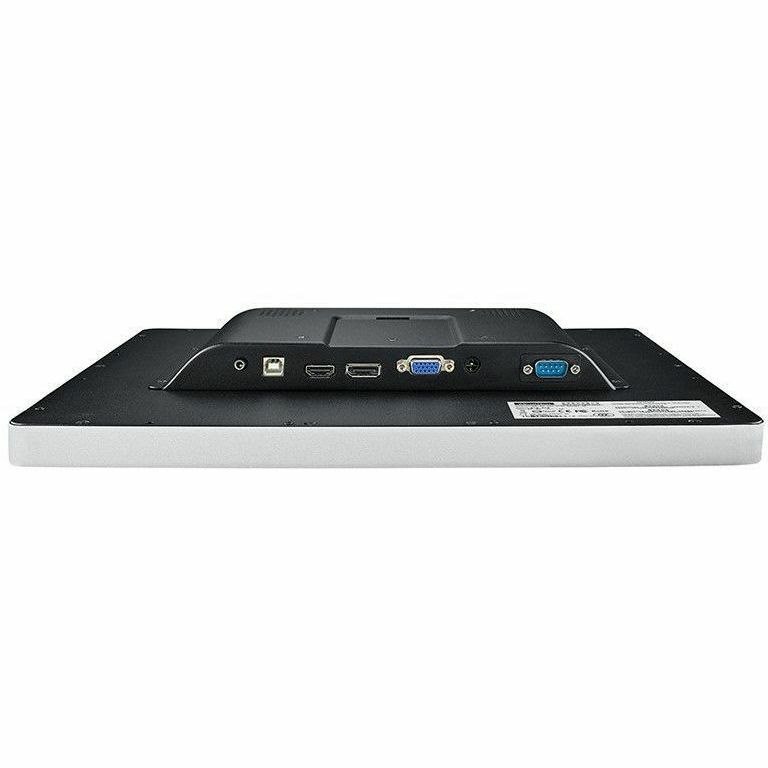

- Interfaces/Ports
- HDMI
- Yes
- USB
- Yes
- VGA
- Yes
- DisplayPort
- Yes
- Number of HDMI Inputs
- 1
- Total Number of HDMI Ports
- 1
- Number of USB Ports
- 1
- Number of DisplayPorts
- 1
- Number of VGA Ports
- 1
- Power Description
- Frequency
- 50 Hz
- 60 Hz
- Physical Characteristics
- VESA Mount Compatible
- Yes
- VESA Mount Standard
- 100 x 100
- Height
- 285 mm
- Width
- 359.1 mm
- Depth
- 46.2 mm
- Weight (Approximate)
- 3.50 kg
- Miscellaneous
- Package Contents
- VUE-2150 15.0" Square Touch Panel Mount Monitor
- Power Adapter (1.5M, Black)
- VGA Cable (1.8M, Black)
- HDMI Cable (1.8M, Black)
- DisplayPort Cable (1.8M, Black)
- Audio Cable (1.8M, Black)
- USB Cable (1.8M, Black), for touch function
- External Control Key Pad
- Side Mount Bracket Kit
- Cable Organizer Kit (Aluminum)
- Startup Manual (Paper)
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
