- General Information
- Manufacturer
- Lenovo Group Limited
- Manufacturer Website Address
- http://www3.lenovo.com/au/en
- Brand Name
- Lenovo
- Product Line
- ThinkSystem
- Product Series
- SR650 V2
- Product Type
- Server
The Lenovo ThinkSystem SR650 V2 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR650 V2 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
- Warranty
- Limited Warranty
- 3 Year
- Processor
- Number of Processors Supported
- 2
- Number of Processors Installed
- 1
- Processor Manufacturer
- Intel
- Processor Type
- Xeon Silver
- Processor Generation
- 3rd Gen
- Processor Model
- 4310
- Processor Core
- Dodeca-core (12 Core)
- Processor Speed
- 2.10 GHz
- Cache
- 18 MB
- Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- C621A

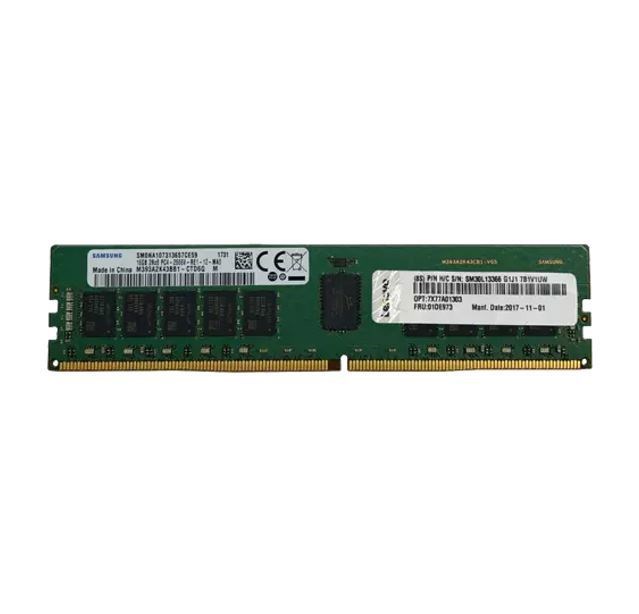

- Memory
- Standard Memory
- 16 GB
- Maximum Memory Supported
- 8 TB
- Memory Technology
- TruDDR4
- Memory Clock Speed
- 3.20 GHz
- Error Checking
- ECC
- Total Number of Memory Slots
- 32.0
- Number of Occupied Memory Slots
- 1
- Intel Optane Memory Ready
- Yes
- Signal Processing
- Registered (Buffered)
- Storage
- Total Hard Drive Capacity
- No
- Optical Drive Type
- No
- Controllers
- Controller Type
- 12Gb/s SAS
- Controller Model
- 930-8i
- RAID Supported
- Yes
- RAID Levels
- 0, 1, 5, 6, 10, 50, 60, JBOD
- I/O Expansions
- Number of Total Expansion Bays
- 8
- Number of 3.5" Bays
- 8
- Number of LFF Bays
- 8
- Hot Swappable Bays
- Yes
- Total Number of Expansion Slots
- 3.0
- PCI Express x8 (Gen 3.x) Slots
- 2
- PCI Express x16 (Gen 3.x) Slots
- 1
- PCI Express Details
- 3 (x16, x8, x8) Gen3
- Display & Graphics
- Graphics Controller Manufacturer
- Matrox
- Graphics Controller Model
- G200
- Graphics Memory Capacity
- 16 MB
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Interfaces/Ports
- Total Number of USB Ports
- 6
- Number of USB 2.0 Ports
- 1
- Number of USB 3.1 Type-A Ports
- 4
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 4
- VGA
- Yes
- Number of VGA Ports
- 1
- Remote Management
- Yes
- Remote Management Controller
- XClarity Controller (XCC) Standard
- Operating System
- Operating System Supported
- Windows Server 2016
- Windows Server 2019
- Windows Server 2022
- Red Hat Enterprise Linux 7.9
- Red Hat Enterprise Linux 8.2
- Red Hat Enterprise Linux 8.3
- Red Hat Enterprise Linux 8.4
- Red Hat Enterprise Linux 8.5
- Red Hat Enterprise Linux 8.6
- Red Hat Enterprise Linux 8.7
- Red Hat Enterprise Linux 9.0
- Red Hat Enterprise Linux 9.1
- SUSE Linux Enterprise Server 12 SP5
- SUSE Linux Enterprise Server 15 SP2
- SUSE Linux Enterprise Server 15 SP3
- SUSE Linux Enterprise Server 15 SP4
- Ubuntu 18.04 LTS
- Ubuntu 20.04 LTS
- Ubuntu 22.04 LTS
- Operating System
- No

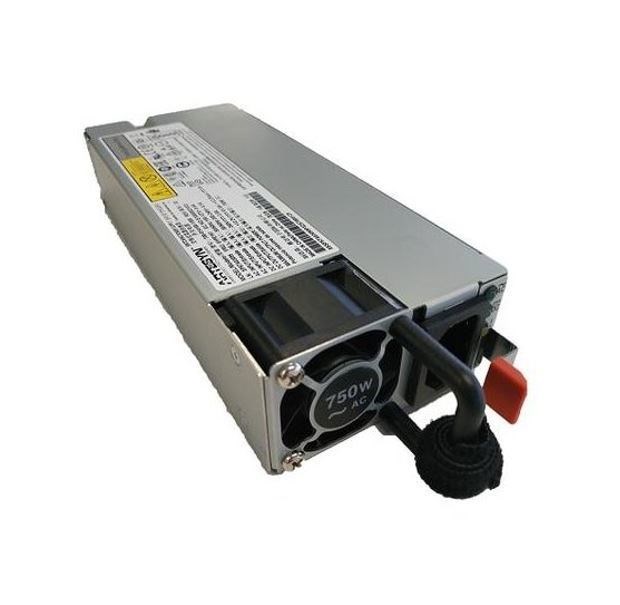

- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Number of Power Supplies Supported
- 2
- Number of Power Supplies Installed
- 1
- Plug/Connector Type
- C13
- Maximum Power Supply Wattage
- 750 W
- Hot Swappable Power Supply
- Yes
- Power Source
- Power Supply
- Physical Characteristics
- Form Factor
- Rack
- Rack Height
- 2U
- Height
- 86.4 mm
- Width
- 444.5 mm
- Depth
- 764.5 mm
- Weight (Approximate)
- 38.80 kg
- Miscellaneous
- Security Features
- Chassis intrusion switch
- Power-on password
- Administrator's password
- Trusted Platform Module (TPM), supporting TPM 2.0
- Energy Star
- Yes
- Environmentally Friendly
- Yes
- Energy Efficiency Certification
- China Energy Conservation Program (CECP)
