- General Information
- Manufacturer
- Vertiv
- Manufacturer Website Address
- http://www.vertiv.com/
- Brand Name
- AVOCENT
- Product Line
- AutoView
- Product Series
- AV 100
- Packaged Quantity
- 1
- Product Type
- KVM Switchbox

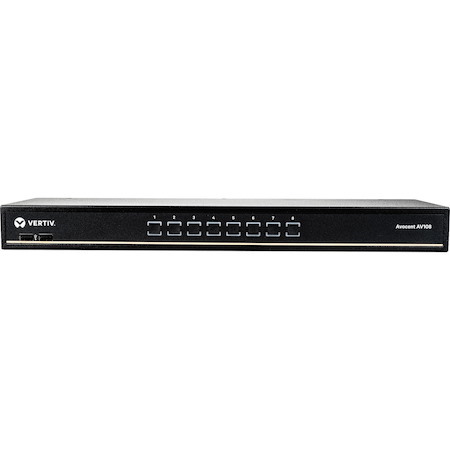

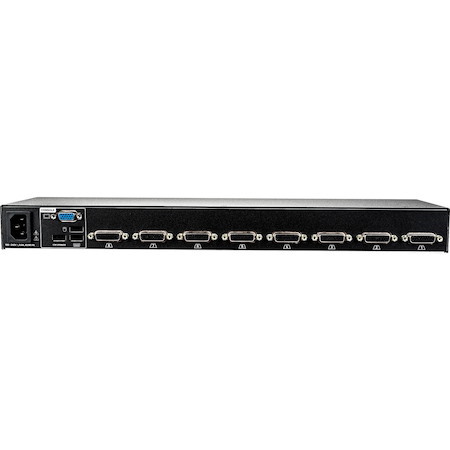

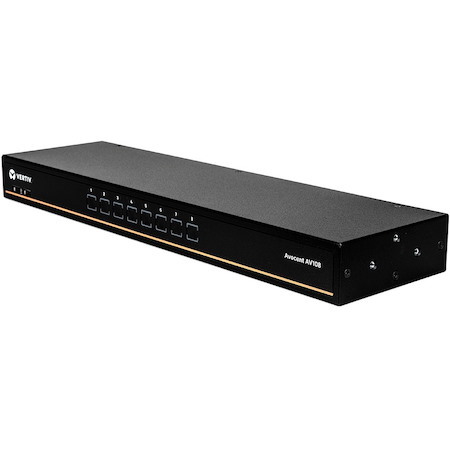

The Vertiv Avocent AutoView 108 (AV108) KVM Switch is a compact, 8-port entry-level solution to local server management for small data centers, branch offices, and IT rooms. The straightforward user experience consists of a basic KVM feature set with on-screen display (OSD), simple touch button, hotkey operation, and cascade support. It delivers streamlined local access and control designed to be available when needed with user-friendly features for controlling all devices and tasks. The AV108 KVM switch is available in 1U, 0U, and desktop configurations, and is easy to configure and maintain. It offers centralized access, management, and event logging when requirements don't allow remote (IP) connectivity to the server.
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- KVM Technology
- Analog
- Connectivity Technology
- Wired
- Number of Computers Supported
- 8
- Number of Local Users Supported
- 1
- Device Type
- Rack KVM
- IP Rating
- IP52
- Video
- Maximum Video Resolution
- 2048 x 1536
- Interfaces/Ports
- USB
- Yes
- VGA
- Yes
- DisplayPort
- Yes
- Proprietary Interface
- Yes
- Serial Port
- Yes
- Number of USB Ports
- 5
- Number of VGA Ports
- 1
- Number of Proprietary Ports
- 8
- Environmental Conditions
- Minimum Operating Temperature
- 0°C
- Maximum Operating Temperature
- 50°C
- Power Description
- Input Voltage
- 110 V AC
- 220 V AC
- Input Voltage Range
- 100V AC to 240V AC
- Frequency
- 50 Hz
- 60 Hz
- Power Consumption
- 10 W
- Physical Characteristics
- Form Factor
- Desktop
- Rack-mountable
- Rack Height
- 1U
- Height
- 43.7 mm
- Width
- 431.8 mm
- Depth
- 120.7 mm
- Weight (Approximate)
- 1.63 kg
