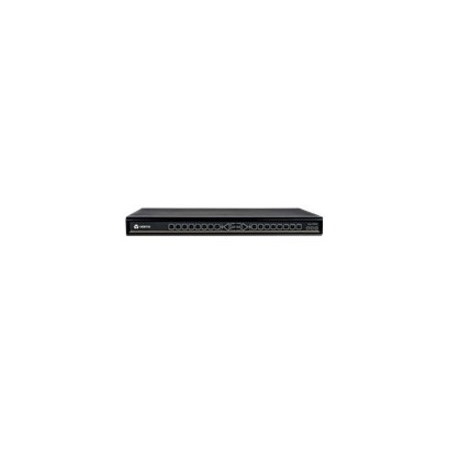

VERTIV Cybex SCM 100 SCM185 KVM Switchbox - TAA Compliant

  • Part: 1511075
  • Model: SCM185-001
$3,956.70

Availability

Out of Stock

The Vertiv™ Cybex™ SCM185 is an 8-port Secure Desktop KVM Matrix with DVI and HDMI outputs, perfect for environments needing secure monitoring of multiple computers. Effortlessly switch between up to four networks at the push of a button, or use Cursor Navigation Switching (CNS) for seamless toggling between two networks. Despite its user-friendly setup, the Cybex™ SCM185 delivers a reliable dual monitor solution to protect against cyber intrusions. Security is paramount, with Unidirectional Optical Data Diodes (UODD) ensuring data flows in only one direction, preventing unauthorized access. Protected video display emulators eliminate potential data leakage, and the Dedicated Peripheral Port (DPP) provides secure connections to USB authentication devices like Smart-card CAC and biometric readers. Tamper-Evident Labels offer visual alerts if hardware has been compromised, adding an extra layer of security.

  • General Information
    • Manufacturer
    • Vertiv
    • Manufacturer Website Address
    • http://www.vertiv.com/
    • Brand Name
    • VERTIV
    • Product Line
    • Cybex
    • Product Series
    • SCM 100
    • Product Type
    • KVM Switchbox
  • Warranty
    • Limited Warranty
    • 3 Year

  • Technical Information
    • Connectivity Technology
    • Wired
    • Number of Computers Supported
    • 8
    • Number of Local Users Supported
    • 2
    • Device Type
    • Secure Desktop KVM
  • Video
    • Maximum Video Resolution
    • 2560 x 1600
  • Interfaces/Ports
    • USB
    • Yes
    • DVI
    • Yes
    • Number of USB Ports
    • 19
    • Number of DVI Ports
    • 10
  • Environmental Conditions
    • Minimum Operating Temperature
    • 0°C
    • Maximum Operating Temperature
    • 40°C
  • Power Description
    • Input Voltage
      • 230 V AC
      120 V AC
    • Input Voltage Range
    • 100 to 240V AC
    • Frequency
    • 50 Hz
    • 60 Hz
  • Physical Characteristics
    • Form Factor
    • Desktop
    • Rack-mountable
    • Height
    • 43.2 mm
    • Width
    • 439.4 mm
    • Depth
    • 185.4 mm
    • Weight (Approximate)
    • 2.45 kg
  • Miscellaneous
    • TAA Compliant
    • Yes
