- General Information
- Manufacturer
- Vertiv
- Manufacturer Website Address
- http://www.vertiv.com/
- Brand Name
- Liebert
- Product Line
- GXT RT+
- Product Type
- Double Conversion Online UPS

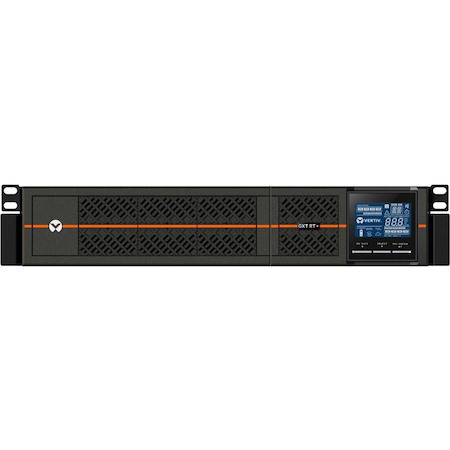

With flexible rack or tower mounting options, the Liebert® GXT RT+ UPS offers online technology with two stages of power conversion for superior, yet affordable power protection that is ideal for edge or space-constrained facilities where reliable, efficient power protection is needed to ensure business continuity. The Liebert® GXT RT+ UPS delivers the high-performance protection you need in a flexible and economical form factor | one with features and functionality that enable rapid deployment and seamless network integration.
Features and Benefits:
Features:
| Output power factor of 0.9
| Automatic bypass, allowing the load to transfer to the mains in case of an overload or internal fault

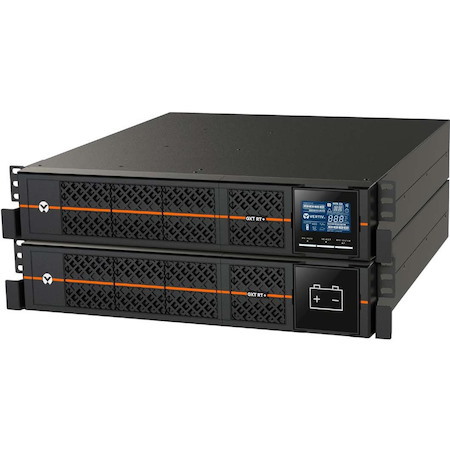

| Optional tower or rack installation to meet varying installation requirements
| Adapts to areas with unstable power-mains supply via high-frequency double-conversion topology structure, with high input-power factor, wide input-voltage range, and output immune to grid interference
| ECO power-supply mode helps you save the maximum amount of energy
Benefits:
| Streamlined UPS selection and deployment due to rack or tower mounting flexibility
| Improved utilization enabled by high 0.9 power factor
| Simplified installation with at-a-glance configuration information on a user-friendly interface (LCD)
| Extended or scalable runtimes supported by optional external battery cabinets
| Improved energy efficiency and lower TCO
| Enhanced power management enabled by monitoring compatibility
- Technical Information

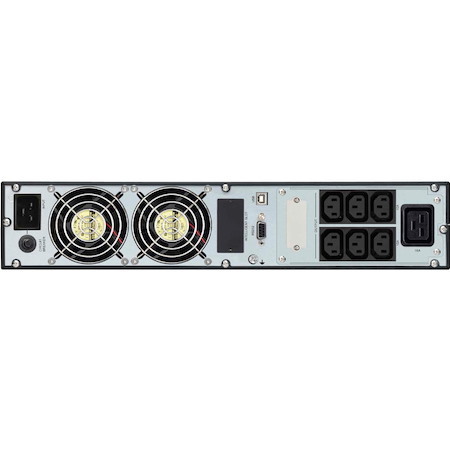

- Plug/Connector Type
- IEC 60320 C14
- Receptacle Type
- IEC 60320 C19
- IEC 60320 C13
- Receptacle Detail
- 1 x IEC 60320 C19
- 6 x IEC 60320 C13
- Bypass Switch
- Automatic
- Transfer Time
- 4 ms
- Phase
- Single Phase
- Power Description
- Load Capacity (VA)
- 3 kVA
- Load Capacity (Watt)
- 2.70 kW
- Input Voltage
- 300 V AC
- Output Voltage
- 240 V AC
- Waveform Type
- Pure Sine Wave
- Controls/Indicators
- Status Indicators
LCD display
- Interfaces/Ports
- Serial Port
- Yes
- VGA
- No
- Modem (RJ-11)
- No
- Network (RJ-45)
- No
- USB
- Yes
- Battery Information
- Number of Batteries
- 2
- Battery Characteristics
- Valve-regulated, Sealed
- Battery Chemistry
- Lead Acid
- Battery Size
- 12V
- Battery Capacity
- 9000 mAh
- Backup/Run Time (Full Load)
- 3.30 Minute
- Backup/Run Time (Half Load)
- 11 Minute
- Hot Swappable
- Yes
- Environmental Conditions
- Sound Emission (A-Weighted)
- 55 dB(A)
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Height
- 88 mm
- Width
- 438 mm
- Depth
- 462 mm
- Rack Height
- 2U
- Form Factor
- Rack/Tower
- Weight (Approximate)
- 27.60 kg
- Miscellaneous
- Certifications & Standards
- CE Mark
- IEC/EN 62040-1: 2014
- IEC/EN 62040-2:2006+AC:2006 Class A
- EN 61000-4-5: 2005 Class 2 L-N
- Class 3 L-G
- ISTA 2A
- Country of Origin
- China
