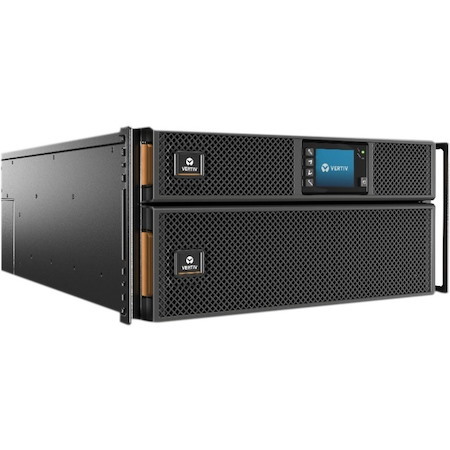

The Vertiv Liebert GXT5 UPS is an online double conversion UPS solution which offers premium power outage protection and continuous power conditioning in a compact and flexible deployment system. This single phase UPS operates with high power efficiency and it is ideally suited to protect critical infrastructure in both centralized and edge network applications. Scalable runtime options with matching external battery cabinets offer additional flexibility when extended uninterrupted power is required. User-friendly LCD interface as well as full network management capability, including configuration and remote updates, make this system easy to deploy and simple to maintain. With market-leading efficiency and unity power factor operation, the Liebert GXT5 UPS will fulfill your critical application needs.
- General Information
- Manufacturer
- Vertiv
- Manufacturer Website Address
- http://www.vertiv.com/
- Brand Name
- Liebert
- Product Series
- GXT5
- Product Type
- Double Conversion Online UPS
- Warranty
- Limited Warranty
- 4 Year
- Technical Information
- Plug/Connector Type
- Hardwired
- Receptacle Type
- IEC 60320 C13
- IEC 60320 C19
- Receptacle Detail
- 4 x IEC 60320 C13
- 4 x IEC 60320 C19
- Transfer Time
- 0 ns
- EMI/RFI Noise Filter
- Yes
- Phase
- Single Phase
- Application/Usage
- IT Equipment
- Finance
- Banking
- Telecommunication
- Healthcare
- Retail Building
- Edge Computing
- IOT Device
- Business
- Mission Critical Equipment
- Network
- Power Description
- Load Capacity (VA)
- 8 kVA
- Load Capacity (Watt)
- 8 kW
- Input Voltage
- 230 V AC
- Input Voltage Range
- 176 V AC - 288 V AC
- Output Voltage
- 200 V AC
- 208 V AC
- 220 V AC
- 230 V AC
- 240 V AC
- Input Frequency
- 70 Hz
- Output Frequency
- 60 Hz
- Waveform Type
- Pure Sine Wave
- Management
- Network Management
- SNMP/Webcard
- Controls/Indicators
- Status Indicators
LEDs & LCD Display
- Interfaces/Ports
- Serial Port
- Yes
- Network (RJ-45)
- Yes
- USB (HID Compliant) Port
- Yes
- Battery Information
- Number of Batteries
- 16
- Battery Characteristics
- Valve-regulated, Non-spillable
- Battery Chemistry
- Lead Acid
- Battery Size
- 12V
- Battery Capacity
- 9000 mAh
- Backup/Run Time (Full Load)
- 3.50 Minute
- Backup/Run Time (Half Load)
- 9.50 Minute
- Hot Swappable
- Yes
- Replaceable Battery
- Yes
- Environmental Conditions
- Maximum Operating Temperature
- 40°C
- Storage Temperature
- -15°C - 40°C
- Maximum Operating Elevation
- 3 km
- Physical Characteristics
- Height
- 217 mm
- Width
- 430 mm
- Depth
- 630 mm
- Rack Height
- 5U
- Form Factor
- Rack/Tower
- Weight (Approximate)
- 75 kg
- Miscellaneous
- Package Contents
- GXT5 UPS - 8000VA/8000W 230V Online Double Conversion UPS
- RDU101 Webcard and Rail Kit Bundled
- Energy Star
- Yes
- Country of Origin
- China
- TAA Compliant
- No
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
