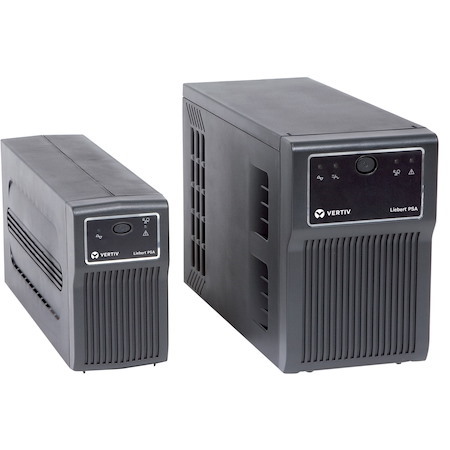

The Vertiv Liebert PSA uninterruptible power supply (UPS) is a cost-effective, line-interactive UPS system designed for small office computers and electronic equipment. This 1500VA UPS provides three minutes of back-up time at full load, which is ample time to save work in process and shut down your connected equipment. It comes with a Liebert UPS USB shutdown software and a USB cable to allow remote alerts and automated graceful shutdown of the connected systems. It offers simple controls for easy operation. This UPS includes 6 battery-backed outlets and 2 surge-only outlets. The Liebert PSA UPS is suited for desktop PCs, workstations, small routers, bridges and hubs, point-of-sale terminals and other sensitive electronics. It has a 2-year Vertiv no-hassle replacement UPS warranty.
- General Information
- Manufacturer
- Vertiv
- Manufacturer Website Address
- http://www.vertiv.com/
- Brand Name
- Vertiv Liebert
- Product Series
- PSA
- Product Type
- Line-interactive UPS
- Technical Information
- Plug/Connector Type
- IEC 60320 C14
- Receptacle Type
- IEC 60320 C13
- Receptacle Detail
- 8 x IEC 60320 C13
- Dataline Protection
- RJ-45
- Protection Type
- Lightning
- Surge
- Overload Protection
- Yes
- Emergency Power OFF
- No
- Cord Length
- 3.05 m
- Transfer Time
- 6 ms
- Phase
- Single Phase
- Application/Usage
- Desktop Computer
- Network Hub
- Network Router
- Network Bridge
- POS Terminal
- Workstation
- Power Description
- Load Capacity (VA)
- 1.50 kVA
- Load Capacity (Watt)
- 900 W
- Input Voltage
- 230 V AC
- Input Voltage Range
- 160 V AC - 287 V AC
- Output Voltage
- 230 V AC
- Input Frequency
- 60 Hz
- Output Frequency
- 60 Hz
- Waveform Type
- Stepped Sine Wave
- Surge Energy Rating
- 570 J
- Circuit Breaker
- Yes
- Management
- Network Management
- SNMP Manageable
- Alarm
- Yes
- Controls/Indicators
- Status Indicators
- LED
- Interfaces/Ports
- Serial Port
- Yes
- Network (RJ-45)
- Yes
- USB
- Yes
- EPO Port
- No
- Battery Information
- DC System Voltage
- 12 V DC
- Number of Batteries
- 4
- Battery Characteristics
- Valve-regulated
- Battery Chemistry
- Lead Acid
- Battery Capacity
- 9000 mAh
- Backup/Run Time (Full Load)
- 3 Minute
- Backup/Run Time (Half Load)
- 12 Minute
- Battery Life
- 5 Year
- Typical Battery Recharge Time
- 6 Hour
- Environmental Conditions
- Maximum Operating Temperature
- 40°C
- Storage Temperature
- -15°C - 40°C
- Maximum Operating Elevation
- 3 km
- Operating Humidity
- 0% - 90%
- Storage Relative Humidity
- 0% - 90%
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Height
- 234 mm
- Width
- 147 mm
- Depth
- 360 mm
- Form Factor
- Tower
- Weight (Approximate)
- 12.60 kg
- Miscellaneous
- Package Contents
- PSA 1500VA Tower UPS
- User Manual on CD
- Software CD
- USB cable
- Safety Instruction Sheet
- Environment protection sheet
- 3 x IEC output cables for 1000/1500 VA
- Additional Information
- Output frequency: 50/60Hz
- Serial ports quantity: 1
- Battery voltage: 12 V
- Battery capacity: 9 Ahr
- Power supply input frequency: 50/60Hz
- Operating altitude: 0 - 3000 m
- Storage relative humidity (H-H): 0 - 90%, non condensing
- USB 2.0 ports quantity: 1
- Input operation voltage (max): 287 V
- Input operation voltage (min): 160 V
- Number of batteries supported: 2
- Storage temperature (T-T): -15 - 40 °C
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 90%
- Non-operating relative humidity (non-condensing): 0-90%
- International Protection (IP) code: IP20
- Power factor: 0.6
- Cooling type: Air cooling
- RS-232 ports: No
- Audible alarm(s): Yes
- Output power factor: 0.6
- Certifications & Standards
- Safety: IEC/EN/AS 62040-1-1
- Transportation: ISTA Procedure 1A Certification
- CE
- Software Included
- Shutdown Software
- Energy Star
- No
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
