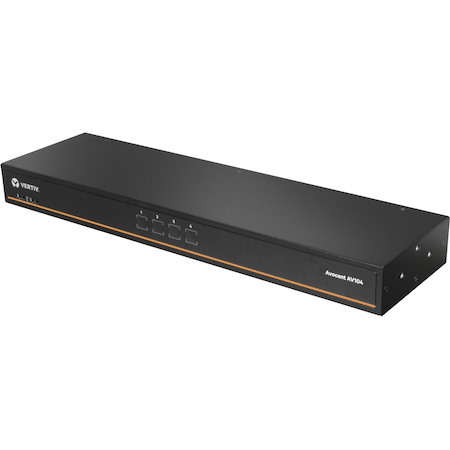

The Vertiv Avocent AutoView 100 (AV100) Series KVM Switch is a compact, entry-level solution to local server management for small data centers, branch offices, and IT rooms. It delivers streamlined local access and control designed to be available when needed with user-friendly features for controlling all devices and tasks. The straightforward user experience consists of a basic KVM feature set with on-screen display and simple touch button and hotkey operation. The Vertiv Avocent KVM switch is easy to configure and maintain, includes 4 CBL017 VGA cables, and is available in 1U, 0U, and desktop configurations. It offers centralized access, management and event logging when requirements don't allow remote (IP) connectivity to the server.
- General Information
- Manufacturer
- Vertiv
- Manufacturer Website Address
- http://www.vertiv.com/
- Brand Name
- AVOCENT
- Product Series
- AV 100
- Product Type
- KVM Switchbox
- Technical Information
- KVM Technology
- Analog
- Number of Computers Supported
- 4
- Number of Local Users Supported
- 1
- Device Type
- Rack KVM
- Video
- Maximum Video Resolution
- 2048 x 1536
- Interfaces/Ports
- USB
- Yes
- VGA
- Yes
- Proprietary Interface
- Yes
- Serial Port
- Yes
- Number of USB Ports
- 5
- Number of VGA Ports
- 1
- Number of Proprietary Ports
- 4
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Input Voltage Range
- 120V AC to 230V AC
- Power Consumption
- 10 W
- Physical Characteristics
- Form Factor
- Rack-mountable
- Desktop
- Rack Height
- 1U
- Height
- 43.7 mm
- Width
- 431.8 mm
- Depth
- 120.7 mm
- Weight (Approximate)
- 1.54 kg
